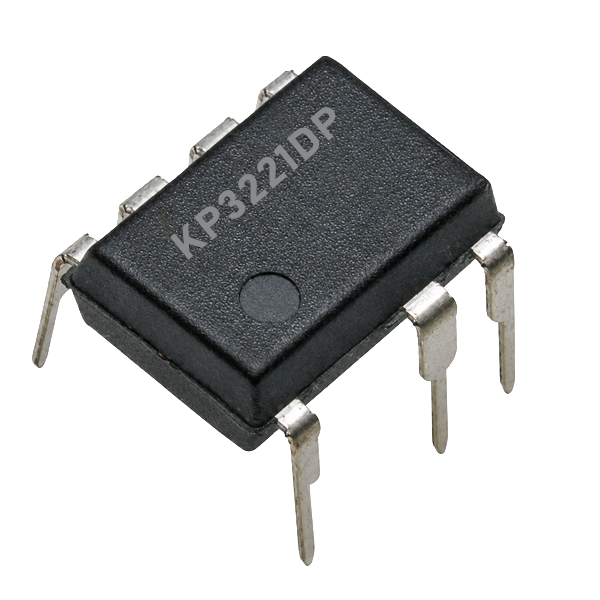

KP3221DP

PartNumber: None

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

KP3222DP is a low-cost offline PWM-controlled power switch IC designed for compact AC-DC power supply applications. It integrates a 650V high-voltage MOSFET and high-voltage startup circuit, reducing external components and simplifying power supply design.
The device uses multi-mode PWM control technology to improve efficiency, line/load regulation, and standby performance. It supports Buck and Buck-Boost converter topologies and provides stable fixed 12V output power conversion for low-power applications.
KP3222DP includes multiple protection functions such as overload protection, cycle-by-cycle current limiting, output over-voltage protection, VDD protection, and thermal protection, making it suitable for reliable offline power supply designs.

Product group	Integrated Circuit (IC)
Package	DIP-7
Model Number	KP3221DP
Operating Mode	Multi-Mode PWM Offline Power Switch with Fixed 12V Output (Supports Buck and Buck-Boost Topologies)
Product Keywords	Offline PWM Power Switch, Buck Power Switch, Buck-Boost Power Switch, Fixed 12V Power Switch, AC-DC Power IC
Protections/Features	Over-Load Protection (OLP), Cycle-by-Cycle Over-Current Protection (OCP), Output Over-Voltage Protection (OVP), VDD Over-Voltage Protection, Under-Voltage Lockout (UVLO), Soft Start, Green Mode, Multi-Mode PWM Control
Internal MOS	Integrated 650V High-Voltage MOSFET
Output Current	Up to 250mA (85–265VAC) / Up to 300mA (150–265VAC) Continuous Load; Peak Load up to 350mA / 400mA (application dependent)
Application Area	Small Home Appliances, Industrial Control Power Supplies, Offline Buck/Buck-Boost Power Supplies, Auxiliary Power Supplies
