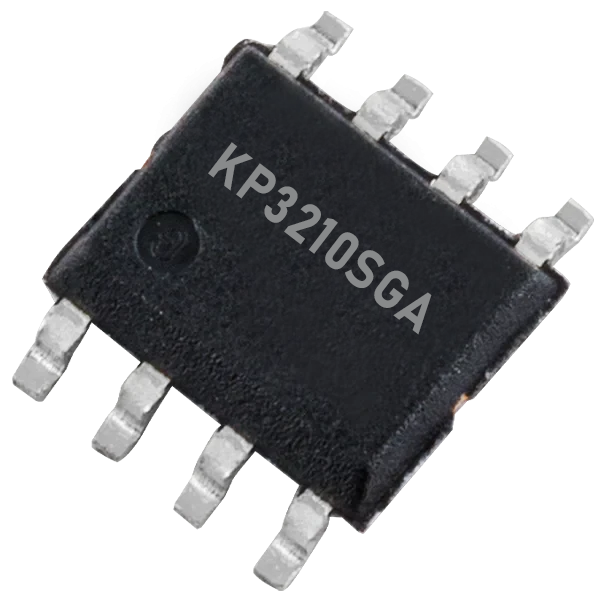

KP3210SGA

PartNumber: None

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

KP3210SGA is a high-performance, low-cost offline PWM-controlled power switch IC designed for low-power AC-DC power supply applications. It integrates a 650V high-voltage MOSFET and a high-voltage startup circuit, reducing external component requirements and simplifying power supply design.
The device uses multi-mode PWM control technology to achieve good line/load regulation, high efficiency, and noise-free operation. It supports Buck and Buck-Boost topologies and provides features such as soft-start, green mode operation, and multiple protection mechanisms for reliable system performance.
KP3210SGA is mainly used in compact offline AC-DC adapters, small household appliance power supplies, and auxiliary power supply designs.

Product group	Integrated Circuit (IC)
Package	SOP-8
Model Number	KP3210SGA
Operating Mode	Multi-Mode PWM Offline Power Switch supporting Buck and Buck-Boost Topologies
Product Keywords	Offline PWM Power Switch, Buck Power Switch, Buck-Boost Power Switch, AC-DC Power IC, Integrated Power Switch
Protections/Features	Over-Load Protection (OLP), Cycle-by-Cycle Over-Current Protection (OCP), Output Over-Voltage Protection (OVP), VDD Over-Voltage Protection, Under-Voltage Lockout (UVLO), Short-Circuit Protection (SCP), Over-Temperature Protection (OTP), Soft Start, Green Mode
Internal MOS	Integrated 650V Power MOSFET
Output Current	Up to 650mA (depending on input voltage and application)
Application Area	AC-DC Adapters, Low-Power Offline Power Supplies, LED Drivers, Small Home Appliances, Consumer Electronics Power Supplies
