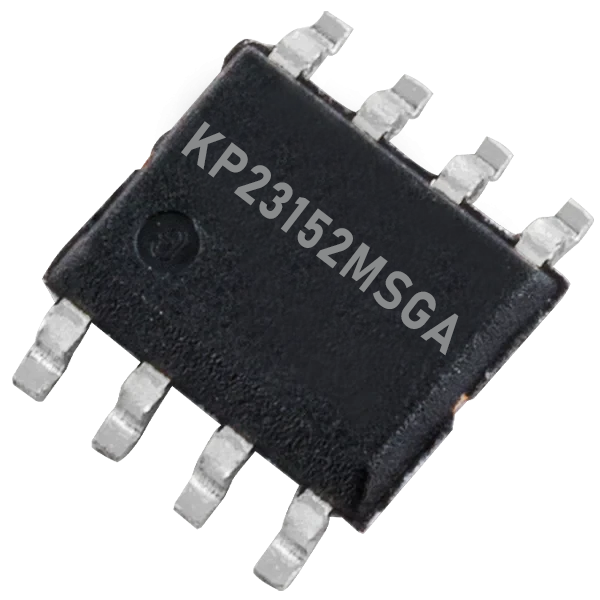

KP23152MSGA

PartNumber: None

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

KP23152MSGA is a high-performance Primary-Side Regulation (PSR) CV/CC offline flyback power switch IC designed for compact AC-DC power supply applications. It integrates a high-voltage power switch and control circuitry to achieve stable constant-voltage and constant-current regulation without requiring secondary-side feedback components.
The device is suitable for charger and adapter applications where high efficiency, low standby power consumption, and reduced external component count are required. It provides integrated protection functions including over-voltage, over-current, short-circuit, thermal protection, and UVLO to improve system reliability.

Product group	Integrated Circuit (IC)
Package	SOP-8
Model Number	KP23152MSGA
Operating Mode	Primary-Side Regulated (PSR) Constant Voltage / Constant Current (CV/CC) Flyback Power Switch
Product Keywords	AC-DC Power Switch, PSR Controller, CV/CC Controller, Offline Flyback Power Switch, Integrated Power Switch
Protections/Features	Line Over-Voltage Protection (LOVP), Brown-Out Protection (BOP), Output Over-Voltage Protection (OVP), Output Short-Circuit Protection (SCP), Cycle-by-Cycle Over-Current Protection (OCP), Over-Temperature Protection (OTP), VDD Over-Voltage and Under-Voltage Protection (UVLO), Single-Failure Protection
Internal MOS	Integrated 800V High-Voltage Power BJT (No Internal MOSFET)
Output Current	Depends on transformer and application (Recommended Power: up to 12W)
Application Area	Mobile Phone Chargers, USB Chargers, AC-DC Power Adapters, Auxiliary Power Supplies, Consumer Electronics Power Supplies

0.0 out of 5

0 reviews

No reviews yet

There have been no reviews for this product yet.

Download the datasheet to view detailed specifications.
