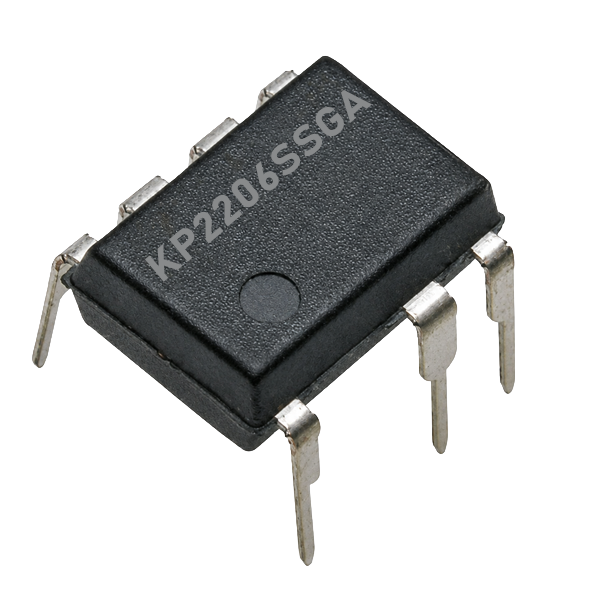

KP2206SSGA

PartNumber: None

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

KP2182DP is a high-performance Quasi-Resonant (QR) Primary-Side Regulation (PSR) CV/CC power switch IC designed for offline flyback charger and adapter applications.
The device integrates a 650V high-voltage MOSFET and uses primary-side control technology to achieve accurate constant voltage and constant current regulation without requiring secondary-side feedback components. It operates in quasi-resonant mode to improve efficiency, reduce switching losses, and provide better thermal performance.
KP2182DP includes advanced protection functions such as single-point failure protection, short-circuit protection, over-voltage protection, over-temperature protection, UVLO, and VDD clamp protection. It is designed for compact, high-efficiency charger and AC/DC adapter solutions.

Product group	Integrated Circuit (IC)
Package	SSOP-9
Model Number	KP2206SSGA
Operating Mode	High-Frequency Quasi-Resonant (QR) Current-Mode PWM Controller for GaN Flyback Converters
Product Keywords	GaN PWM Controller, QR Flyback Controller, Current-Mode PWM Controller, Fast Charger Controller, Offline AC-DC Controller
Protections/Features	High-Voltage Startup, High-Voltage LDO, Direct GaN Gate Driver, Green Mode, Valley Switching, Hiccup Protection, Cycle-by-Cycle Over-Current Protection (OCP), Over-Load Protection (OLP), Under-Voltage Lockout (UVLO), Wide VDD Supply (10V–120V), Selectable Switching Frequency (140kHz/300kHz/500kHz)
Internal MOS	No (Direct GaN Driver for External GaN FET)
Output Current	Application dependent (External GaN Power Device)
Application Area	PD Fast Chargers, USB-C Chargers, GaN Power Adapters, High-Power-Density AC-DC Power Supplies
