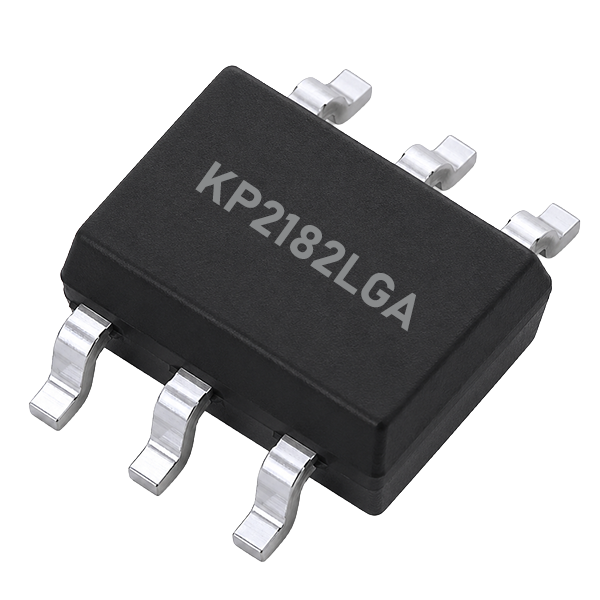

The KP2182LGA is a high-performance quasi-resonant (QR) Primary-Side Regulated (PSR) constant-voltage/constant-current (CV/CC) controller designed for offline flyback AC-DC power supplies, especially battery chargers and power adapters. It operates in quasi-resonant mode under full-load conditions to achieve high efficiency, low EMI, and low temperature rise. The device provides accurate CV/CC regulation without requiring an optocoupler and incorporates comprehensive protection features for reliable operation.
| Product group | Integrated Circuit (IC) |
|---|---|
| Package | ASOP-6 |
| Model Number | KP2182LGA |
| Operating Mode | Quasi-Resonant (QR) Primary-Side Regulated (PSR) Constant Voltage / Constant Current (CV/CC) Flyback Power Switch |
| Product Keywords | AC-DC Power Switch, PSR Controller, QR Flyback Controller, CV/CC Power Switch, Integrated Power MOSFET |
| Protections/Features | Under-Voltage Lockout (UVLO), VDD Over-Voltage Protection (VDD OVP), Cycle-by-Cycle Over-Current Protection (OCP), FB Short-Circuit Protection (FB SLP), FB Over-Voltage Protection (FB OVP), Over-Temperature Protection (OTP), VDD Clamp Protection, Single-Failure Protection, Line Loss Compensation, Multi-Mode Control |
| Internal MOS | Integrated 620V High-Voltage MOSFET |
| Output Current | Application dependent (Recommended Power: up to 18W) |
| Application Area | Mobile Phone Chargers, USB Chargers, AC-DC Power Adapters, Consumer Electronics Power Supplies, Offline Flyback Converters |
