Product Description

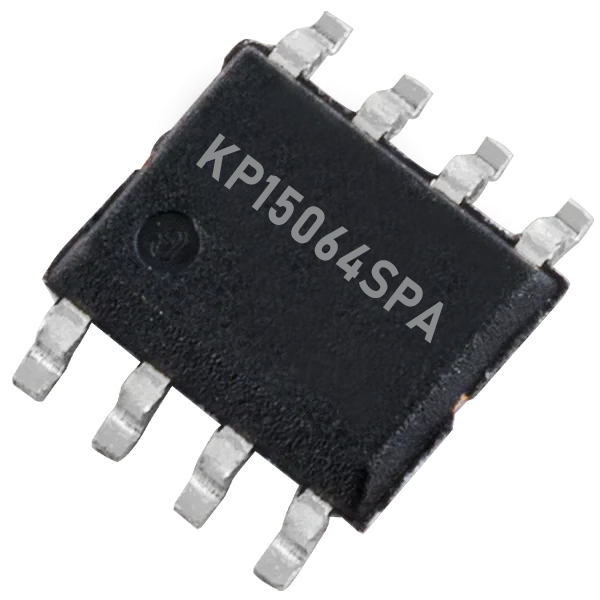

KP15064SPA is a high-performance, low-cost offline PWM power switch IC designed for low-power AC-DC applications. It integrates a 700V high-voltage MOSFET, high-voltage startup circuit, and freewheeling diode, reducing external components and simplifying power supply design.
The device uses multi-mode PWM control technology instead of a fixed-frequency clock, allowing the switching frequency and peak current to adjust according to load conditions. This improves standby power performance, line/load regulation, and eliminates audible noise during operation.
KP15064SPA supports Buck and Buck-Boost topologies and provides integrated protection functions including over-load protection, cycle-by-cycle current limiting, output over-voltage protection, and thermal shutdown. It is suitable for compact low-power offline power supply designs.

Product group	Integrated Circuit (IC)
Package	SOP-8
Model Number	KP15064SPA
Operating Mode	Multi-Mode PWM Offline Buck Power Switch
Product Keywords	Offline PWM Power Switch, Buck Power Switch, AC-DC Power IC, Integrated Power Switch, Offline Power Controller
Protections/Features	Cycle-by-Cycle Over-Current Protection (OCP), Output Over-Voltage Protection (OVP), Under-Voltage Lockout (UVLO), Over-Temperature Protection (OTP), Soft Start, Green Mode
Internal MOS	Integrated 650V Power MOSFET
Output Current	Depends on application and variant (not publicly specified)
Application Area	AC-DC Power Supplies, Offline Buck Converters, LED Drivers, Consumer Electronics Power Supplies, Auxiliary Power Supplies
