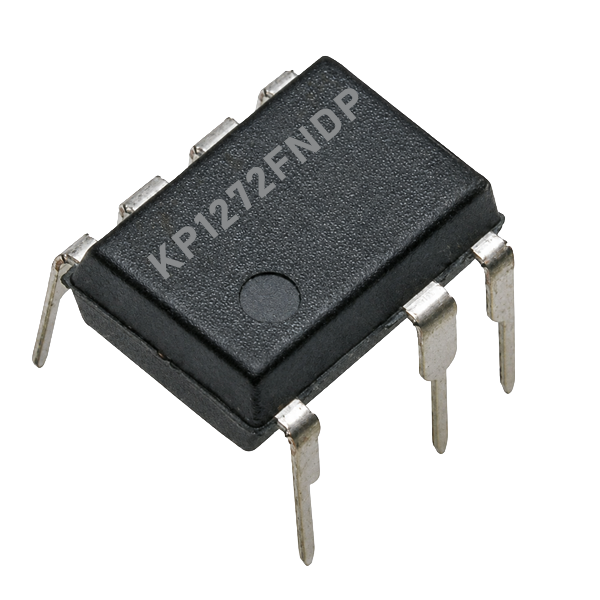

KP1272FNDP

PartNumber: None

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

KP1272FNDP is a highly integrated non-isolated Quasi-Resonant (QR) buck LED constant-current driver IC designed for offline LED lighting applications.
The device integrates a 650V high-voltage MOSFET and high-voltage power supply circuit, eliminating the need for external VDD capacitors and simplifying the peripheral design. It uses QR operation with active PFC control to achieve high power factor, low harmonic distortion, high efficiency, and stable LED current regulation.
KP1272FNDP provides accurate constant-current output using internal sampling and control technology. It includes multiple protection functions such as LED open/short protection, output over-voltage protection, cycle-by-cycle current limiting, line over-voltage protection, and thermal fold-back protection.
It is suitable for compact LED bulbs, LED tubes, and other non-isolated LED lighting products requiring high efficiency and reliable constant-current operation.

Product Group	Integrated Circuit (IC)
Output Current	Up to 180mA (72V Output, application dependent)
Protections/Features	Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over-Current Protection (OCP), Adjustable Output Over-Voltage Protection (OVP), LED Open-Circuit Protection, LED Short-Circuit Protection, Over-Temperature Protection (OTP), Leading Edge Blanking (LEB)
Operating Mode	Quasi-Resonant (QR) Buck Constant-Current LED Driver with High Power Factor (PF > 0.9)
