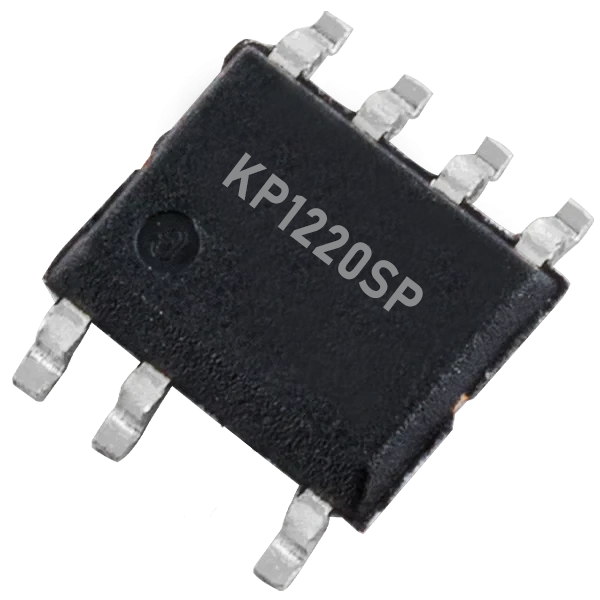

KP1220SP

PartNumber: None

Price

Login for Price

Quantity

Available on Request

Unit Price

Login for Price

Product Description

KP1220SP is a highly integrated TRIAC dimmable Buck-Boost Active PFC LED driver IC designed for offline LED lighting applications. It operates in quasi-resonant mode with active power factor correction technology to achieve high power factor, low harmonic distortion, and high efficiency.
The device integrates a 500V high-voltage MOSFET, high-voltage startup circuit, and supply circuit, reducing external components and simplifying LED driver design. It provides accurate constant-current output using high-precision current sensing and line voltage compensation technology.
KP1220SP also supports SCR/TRIAC dimming, making it suitable for dimmable LED bulbs and lighting products requiring smooth brightness control. It includes complete protection features such as LED open/short protection, over-current protection, over-temperature protection, and output over-voltage protection.

Product Group	Integrated Circuit (IC)
Output Current	Up to 240mA (depending on application and variant)
Protections/Features	Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over-Current Protection (OCP), Output Over-Voltage Protection (OVP), LED Open-Circuit Protection, LED Short-Circuit Protection, Over-Temperature Protection (OTP), Leading Edge Blanking (LEB), Primary-Side Regulation (PSR)
Operating Mode	Triac-Dimmable Quasi-Resonant (QR) Buck-Boost Constant-Current LED Power Switch with Active Power Factor Correction (APFC)
