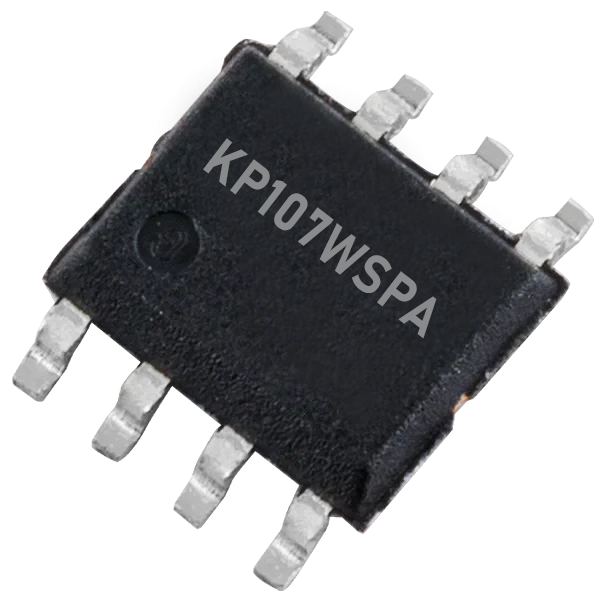

The KP107WSPA is a highly integrated non-isolated quasi-resonant (QR) buck constant-current LED controller designed for offline LED lighting applications. It features an integrated high-voltage startup and VDD power supply circuit, eliminating the need for an auxiliary winding and reducing external component count. The controller provides high-accuracy constant-current regulation (±5%), excellent efficiency through quasi-resonant operation, and reliable protection features for robust LED driver designs. It is ideal for high-power LED lighting such as bulbs, panel lights, downlights, and industrial lighting.
| Product Group | Integrated Circuit (IC) |
|---|---|
| Output Current | Up to 560mA (depending on application) |
| Protections/Features | Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over-Current Protection (OCP), Adjustable Output Over-Voltage Protection (OVP), LED Open-Circuit Protection, LED Short-Circuit Protection, Over-Temperature Protection (OTP), Leading Edge Blanking (LEB), CS Resistor Short-Circuit Protection |
| Operating Mode | Non-Isolated Buck-Type Quasi-Resonant (QR) Constant-Current LED Power Switch |
